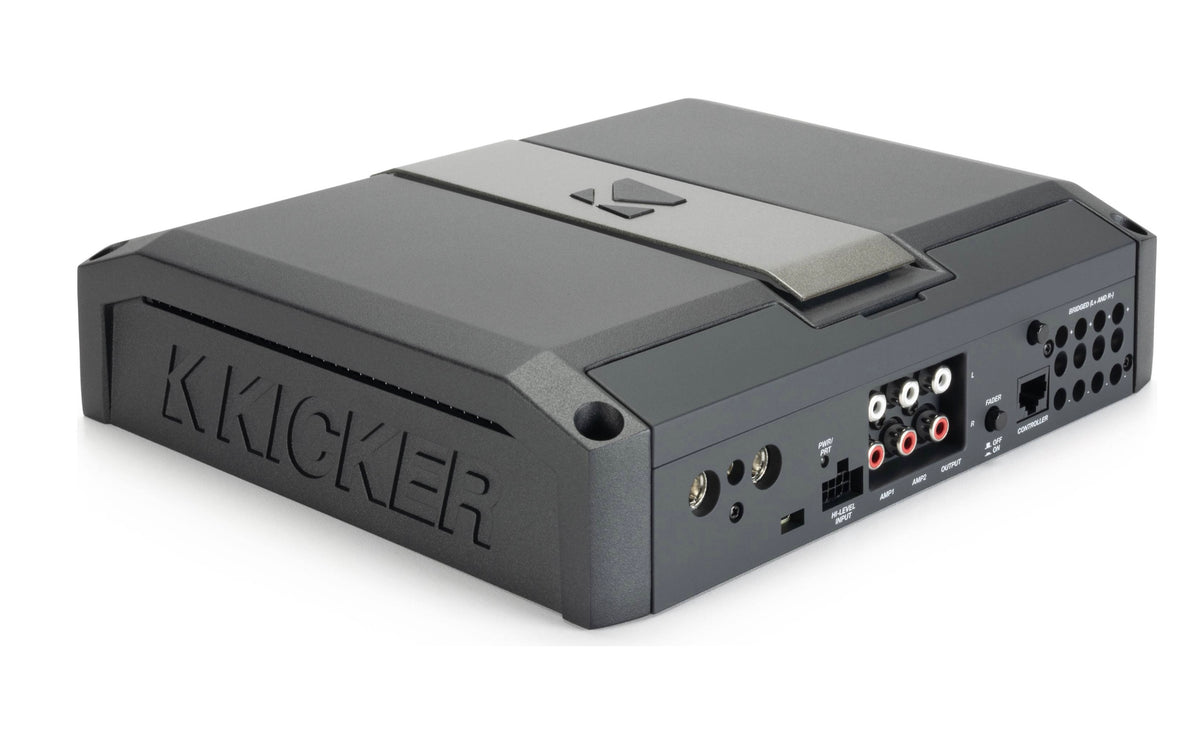

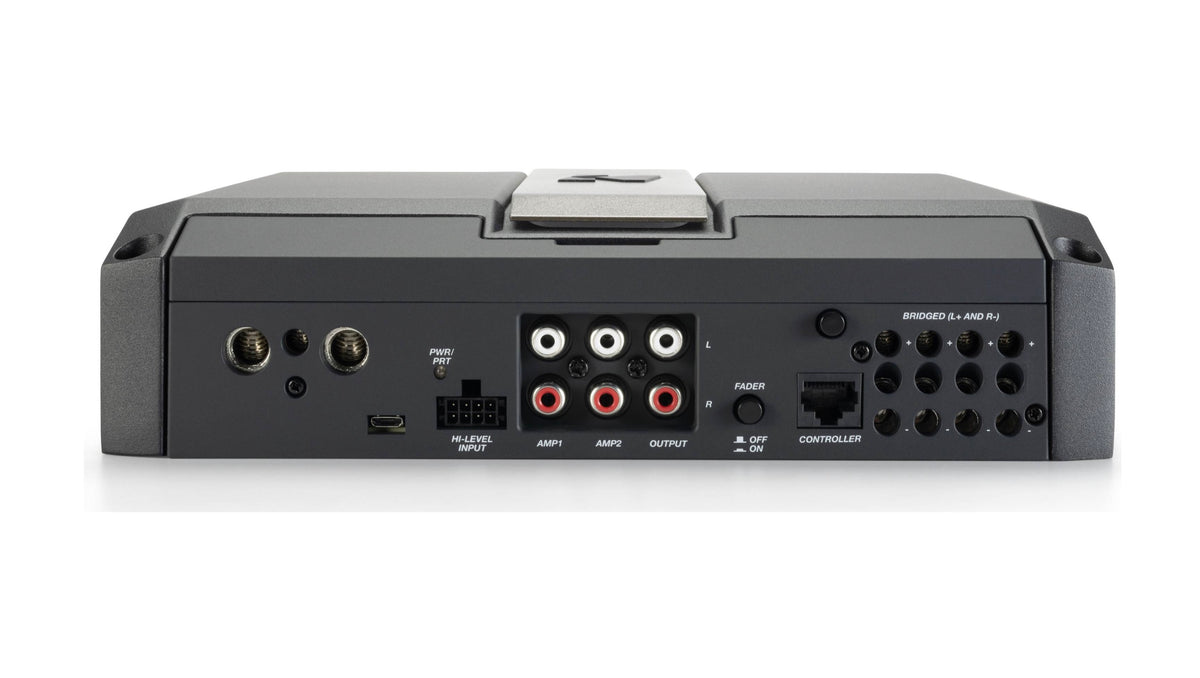

Kicker LX 500.4

Product info:

• 4-channel car amplifier with digital signal processing
  • 125 watts RMS x 4 at 4 ohms
  • 225 watts RMS x 4 at 2 ohms
  • 450 watts RMS x 2 bridged at 4 ohms
• Class D amp technology
  • frequency response: 20-20,000 Hz
• channel gain knobs with clip lights
• adjustable RGB LED accent lighting and reversible center panel with Kicker logo

LXCC Control Center:

• plug in for amp setup only — unplug during normal operation
  • dimensions: 7.17"W (incl cord) x 1.2"H x 3.38"D with 39" cable
• LCD screen with 4 function/adjustment controls and 4 option selectors
• displays amplifier ID, system voltage, amplifier temperature (C°)
• Gain Trim
  • fine-tune channel gains for balance: -9 to +3 dB
• Hi-Pass
  • adjustable frequency: 20-5000 Hz
  • selectable crossover type: Linkwitz-Riley or Butterworth
  • selectable crossover slope: 12, 18, or 24 dB/octave
• Lo-Pass
  • adjustable frequency: 40-5000 Hz
  • selectable crossover type: Linkwitz-Riley or Butterworth
  • selectable crossover slope: 12, 18, or 24 dB/octave
• Time Delay
  • adjustable delay time for left channels: milliseconds
• Channel Mode
  • select Stereo, Mono (L+R), or Mono (L-R)

More info:

• compatible with start-stop vehicle systems
• preamp and speaker-level inputs
  • speaker wire adapters included
  • speaker-level inputs handle up to 40V (400W)
  • signal-sensing turn-on with speaker-level input
• preamp outputs
• wiring, fuse, and hardware not included with amplifier
  • 4-gauge amp wiring kit with fuse or 4-gauge power and ground leads with an 80-amp fuse recommended
• dimensions: 9.449"W x 2.36"H x 8.27"D
